Ultimate Bundle Kit <br> Suzuki Swift Sport ZC32S <br> 2011-2017

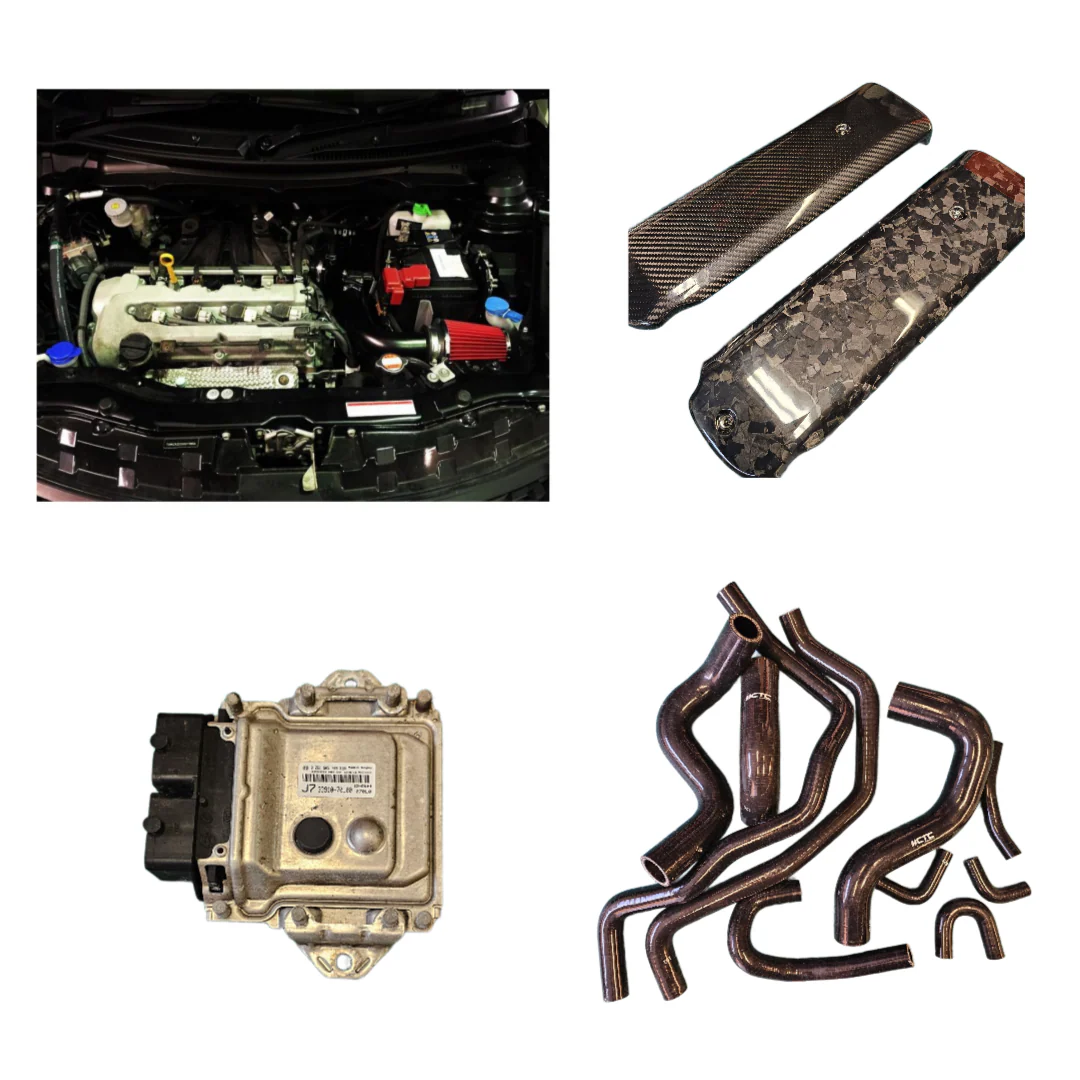

CTC Performance Bundle Kit
To Fit : Suzuki Swift Sport ZC32S 2011-2017 M16A 1.6 16v

CTC Intake With Ram Air Filter
CTC Mapped ECU Plug and Play
CTC Forge Carbon Engine Cover
CTC Silicone hose kit! (BLUE or BLACK)


Our very own intake kit designed and made here in the UK. The kit includes everything you need to install unlike many other kits. It will fit the both Right Hand or Left Hand drive vehicles manufactured in Europe. The kit has been vigorously tested and works well without the fear of management lights like many cheap intake kits. The AFR's are perfect due to the correct design of the MAF housing.

Kit content includes:
-Alloy intake tube with correct internal size and MAF flange along with breather location. Powder coated Black.
-Alloy heat shield for filter
-Black Filter
-Expansion bottle relocation bracket
-Black Silicone hose
-Black Silicone coolant line for expansion bottle
-Black Silicone coolant line to replace metal line / breather
-Hose Clips
-Steel bracket to bolt onto block
-Fittings (nuts and bolts)
-Fitting guide in English

The standard air box will fit back over once this kit is installed so the kit is very discrete. Alternatively please visit our engine section as we also offer Carbon Coil Covers. The filter supplied with the kit should be replaced intermittently. Alternatively we can supply a RamAir Foam Optional Filter also to be replaced on servicing basis. Each fitting kit is prepared for UK and European models (will not fit JDM models).
Fitting Guide

Our Forge Carbon Cover to go over the coil packs!

Our Plug and play mapped ECU! -  OE Suzuki Swift Sport ZC32S ECU Mapped & Immobiliser Lock Removed so will work Plug and Play On Your Vehicle. Results on example showed : Power up from 133bhp to 144bhp (with CTC intake fitted) & peak torque up from 123-129ft lb & 11ft lb gains lower down the rev range.
Fuel Injector Map adjustments
AFR Control Map adjusted
Ignition Map adjustments
VVT Control Map adjustment
Torque Control Map Adjustment
Increased Rev Limit
* Results might vary depending on the vehicle / engine conditions.
** PLEASE NOTE - DUE TO IMMO INFORMATION BEING REMOVED FITTING THIS ECU WILL RESULT IN "YELLOW KEY SYMBOL" FLASHING ON THE INSTRUMENT CLUSTER AT AL TIMES! PLEASE CONSIDER BEFORE PURCHASE!
